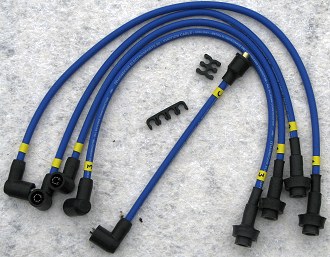

High quality 8mm plug cables. RFI and EMI suppressed. They can be used with the electronic ignition as well as with the original Marelli distributor on series 1 and series 2 Fulvia's. The cables are numbered 1 throug 4.


Optional 1,5 Ohm red power coil. Use without resistor! Current limiting is microprocessor controlled.

Magnet disc. When spark occurs LED lights up through any of the 4 holes for exact timing of fixed advance.

Bushes for 1600 engine

Gear wheel taken from original distributor.


Gear wheel transferred to electronic distributor. Shim for 0,1mm axial play.

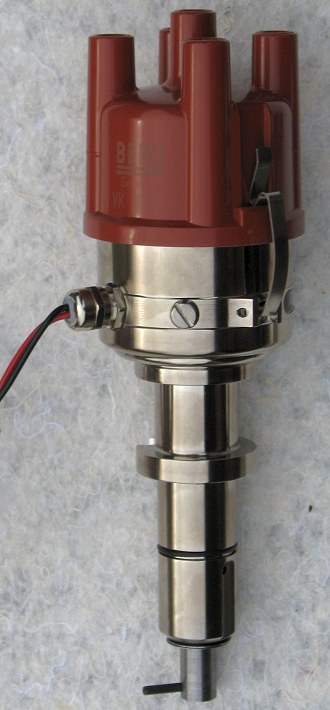

Electronic Ignition
For Fulvia (and Flavia)

Developed by Huib Geurink and 123.

• Direct replacement for the Marelli distributor on all Fulvia's.

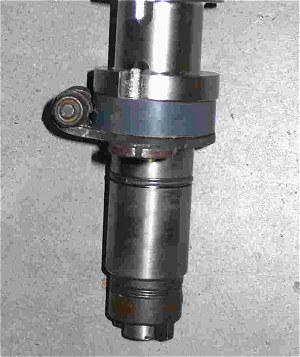

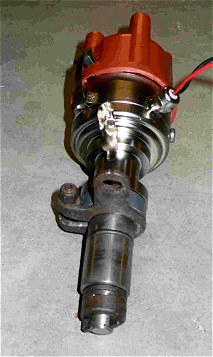

• Can be adapted for Flavia.
• Triggering by magnets. No contact points.
• Built in microprocessor controlled electronics.
• All Fulvia and Flavia dynamic advance curves preprogrammed and switch selectable. See below.
• Software controlled spark balancing to within half a degree crankshaft.
• Capable of driving coils of 1 Ohm and higher.
• Dwell time is software controlled.
• Coil protected from overheating by switching off current after appr. 1 sec. if engine not running.
• Thermal protection of electronics. To reset: switch contact key off and on.
• Built in LED for exact timing of fixed advance.
• Standard cap. Bosch 1 235 522 050 or Beru equivalent.
• Standard rotor. Bosch 1 234 332 024 or Facet equivalent.
• Delivered without gear wheel. Just transfer gear wheel from original distributor. Shim for 0,1mm axial play. Shims included.
• Optional bushes for conversion to 1600cc engines.
• Optional high quality 8mm plug cables. RFI and EMI suppressed.
• Optional 1.5 Ohm red power coil. Use without ballast resistor.

For more information and ordering contact huib@viva-lancia.com

Fulvia curves. Click to enlarge.

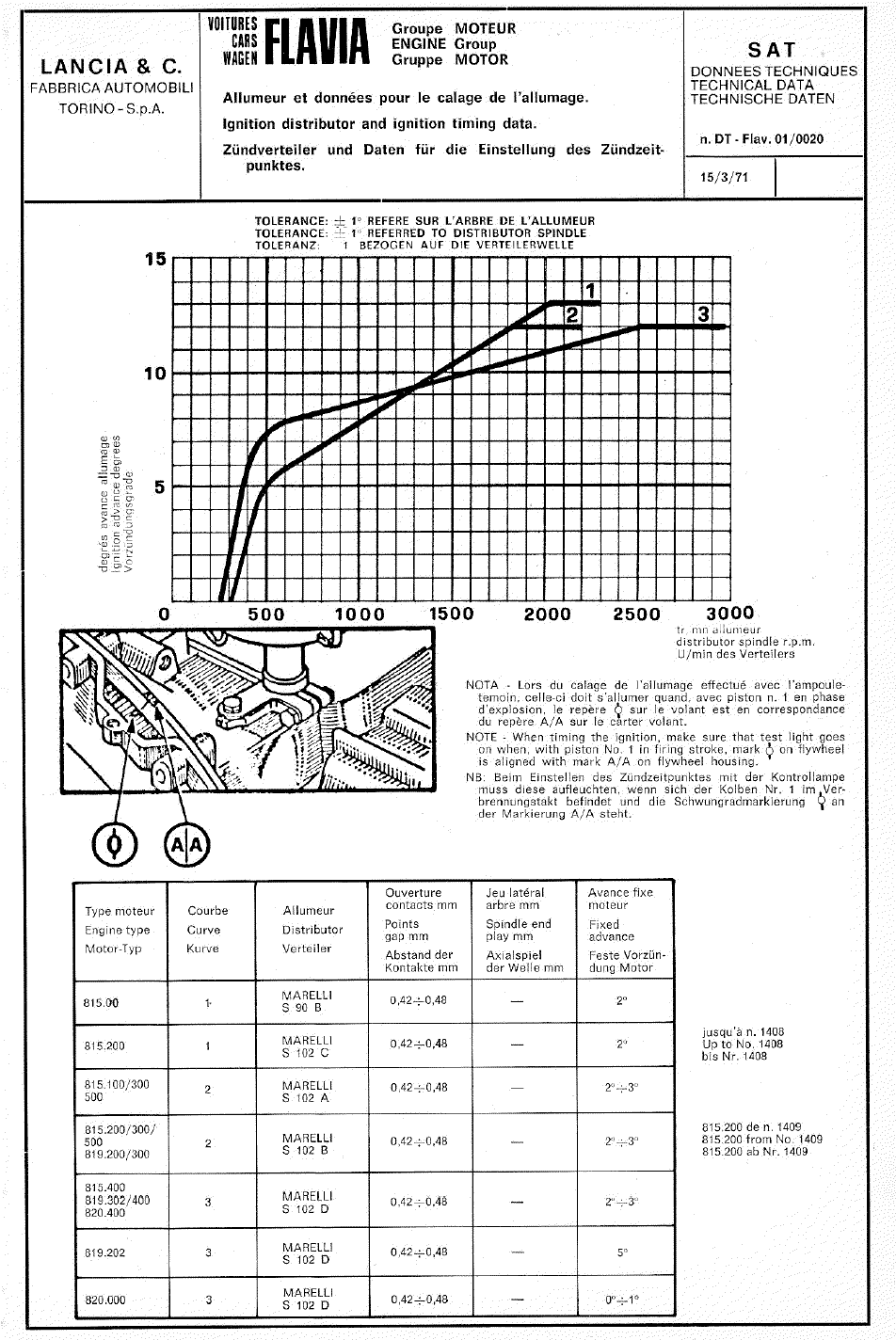

Flavia curves. Click to enlarge.



Curves selectable through switch at the bottom.

Switch	Curve	Engines
0	Fulvia 1	818.000
1	Fulvia 1	818.000
2	Fulvia 2	818.100/130/140/342/302/303/282
3	Fulvia 3	818.540
4	Flavia 1	815.00/200
5	Flavia 2	815.100/200/300/500 819.200/300
6	Flavia 3	815.400 819.202/302/400 820.000/400
